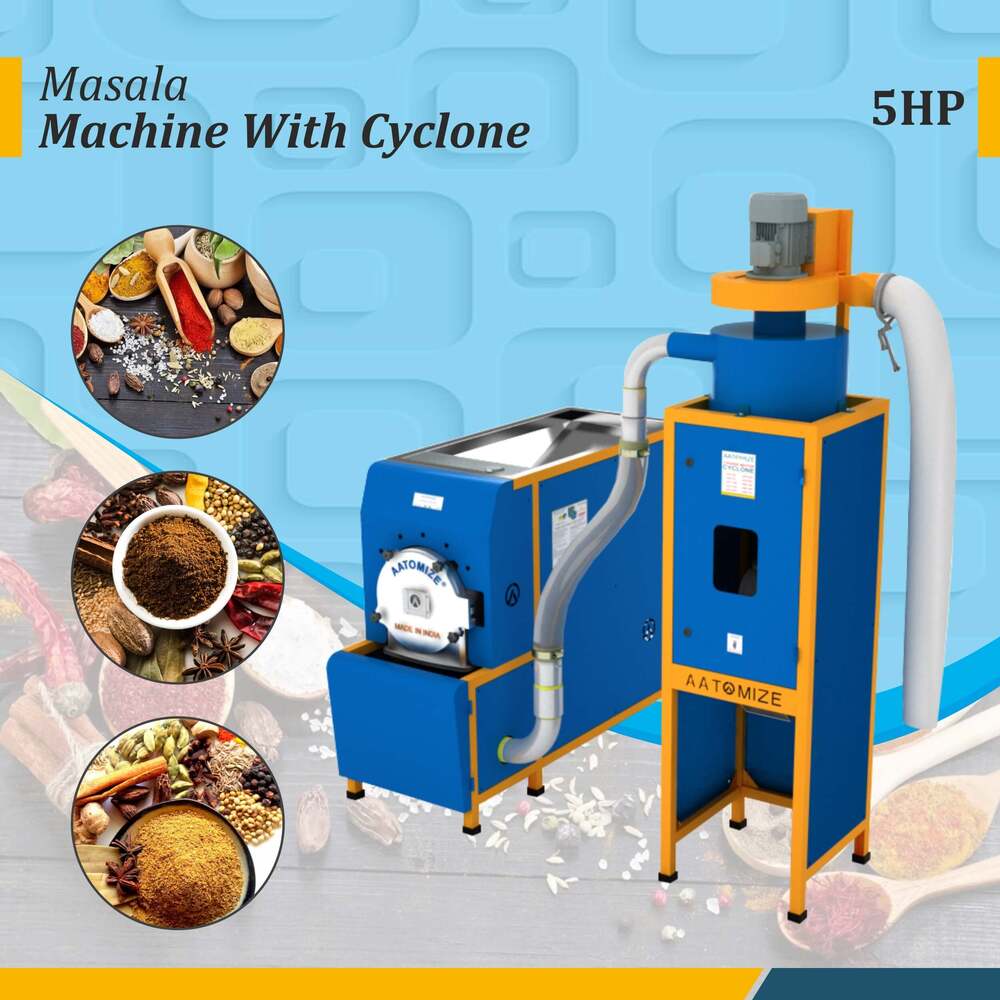

5HP Spice Pulverizer with Double Chamber & Cyclone for Shop Use

About 5HP Spice Pulverizer with Double Chamber & Cyclone for Shop Use

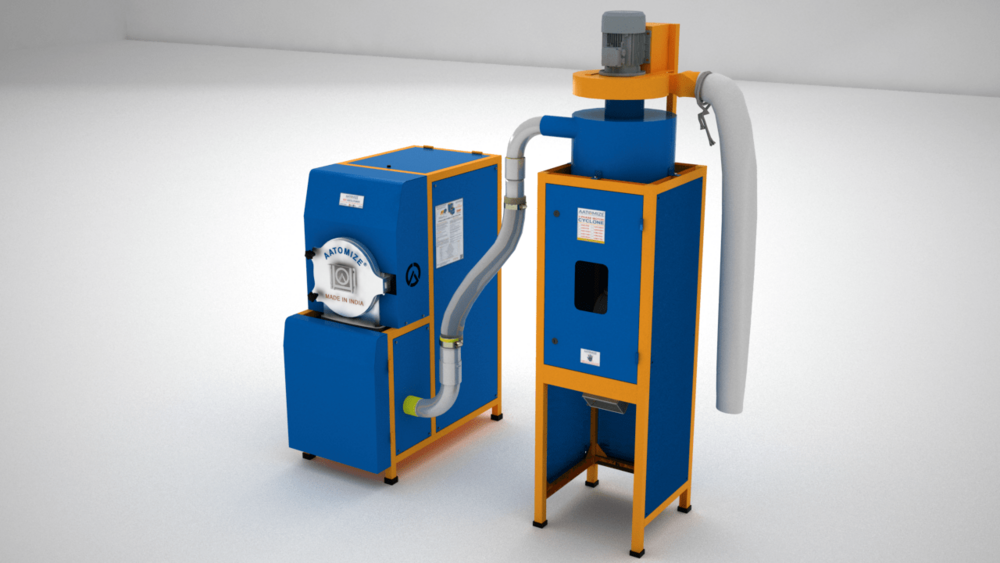

The AATOMIZE AMC502 is a powerful and compact 5HP double chamber masala pulverizer, equipped with a cyclone separator for clean, efficient, and dust-free grinding. Designed for small to medium spice processing businesses, this machine is perfect for grinding a variety of dry spices and herbs with high precision and minimal wastage.

Featuring dual hopper feeding, high-speed double beaters, and an adjustable mesh system, the AMC502 provides consistent, fine powder output for ingredients like turmeric, chili, coriander, cumin, black pepper, and ayurvedic roots. The cyclone dust collector improves powder collection efficiency, maintains cleanliness, and enhances hygienic operation.

Built using powder-coated mild steel, the AMC502 is highly durable, corrosion-resistant, and easy to operate and maintain.

Technical Specifications:

• Model: AMC502

• Main Motor Power: 5HP (Three Phase 415V)

• Cyclone Motor Power: 0.5HP

• Motor RPM: 2880

• Beater Speed: 3840 RPM

• Grinding Capacity: 4060 kg/hr

• System Type: Double Chamber (2 Hopper + 2 Beater) + Cyclone

• Output Type: Fine Powder (Mesh Adjustable)

• Material Compatibility: Spices, Grains, Ayurvedic Roots

• Body Construction: Powder-Coated Mild Steel

• Power Consumption: ~5.56.5 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

Best Suited For:

• Spice Shops & Masala Manufacturers

• Ayurvedic Product Units

• Grocery Stores & Food Processing Startups

• Contract Grinding Services

• Agro-Based Traders

Why Choose Aatomize?

With over 20 years of experience, ISO 9001:2015 & CE certification, and customers across 20+ countries, Aatomize is known for building machines that are efficient, durable, and performance-driven. The AMC502 is your ideal partner for growing spice processing operations.

1-Year Manufacturer Warranty
Pan-India Technical Support
Quick Spare Part Availability
