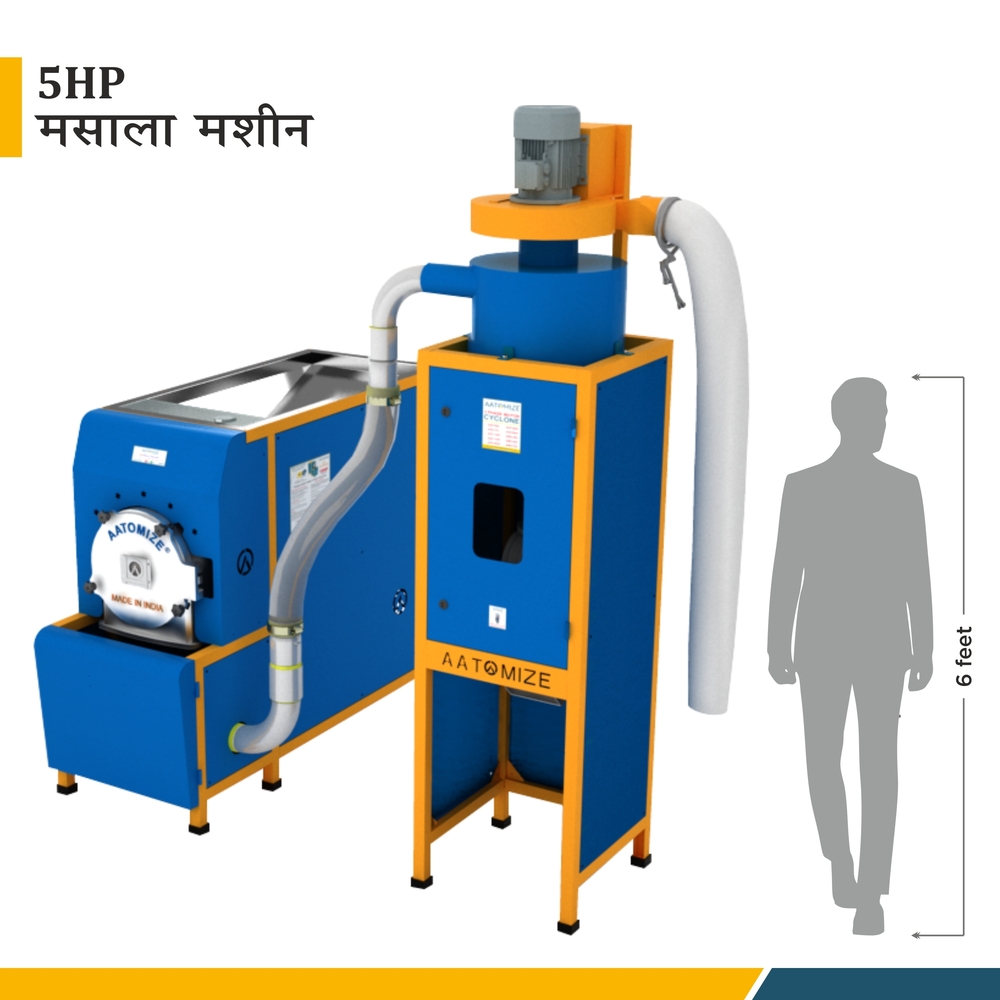

5HP Chilli Powder Machine (With Cyclone)

5HP Chilli Powder Machine (With Cyclone) About

The AATOMIZE AMC502 is a powerful 5HP masala grinding machine designed with an integrated cyclone dust collector, making it perfect for clean, high-volume spice powder processing. Built for commercial use, this machine ensures dust-free operation, maximum powder recovery, and consistent fine grinding, helping you meet modern food safety and productivity standards.

Featuring a double chamber design, dual hopper, and dual high-speed beater system, the AMC502 grinds a variety of dry spices like turmeric, red chili, coriander, cumin, and herbal materials. The cyclone efficiently separates fine powder from the air, minimizing dust and enhancing hygiene and safety in your processing area.

Ideal for medium-scale spice manufacturers, herbal product makers, and masala packaging units, this machine delivers a balance of performance, power, and ease of operation.

Technical Specifications:

• Model: AMC502

• Main Motor Power: 5HP (Three Phase – 415V)

• Cyclone Motor Power: 0.5HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Grinding Capacity: 40–60 kg/hr

• System Type: Double Chamber (2 Hopper + 2 Beater) + Cyclone Separator

• Output Type: Fine Powder (Adjustable Mesh Sizes)

• Material Compatibility: Spices, Pulses, Grains, Herbal Powders

• Construction Material: Powder-Coated Mild Steel

• Power Consumption: ~5.0–5.5 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

Best Suited For:

• Spice Grinding & Packaging Units

• Ayurvedic & Herbal Powder Manufacturers

• Contract Grinding Facilities

• Local Flour & Masala Shops

• Medium-Scale Food Processing Units

Why Choose Aatomize?

Aatomize is a trusted ISO 9001:2015 and CE Certified brand with over 20 years of expertise in food processing machinery. Our machines are known for their reliability, performance, and low maintenance.

The AMC502 is specially crafted for businesses seeking dust-free, hygienic, and energy-efficient spice grinding, backed by a 1-year warranty, excellent service support, and fast spare part availability across India and 20+ export countries.
