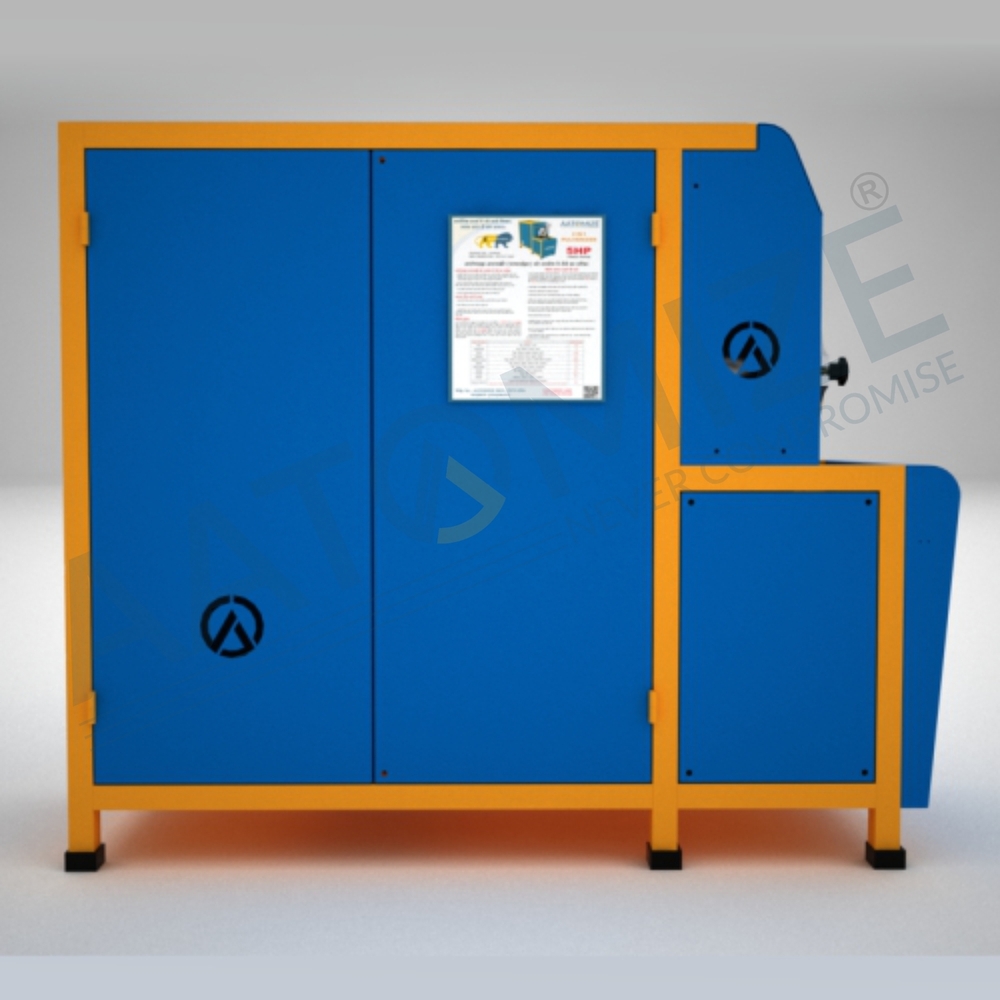

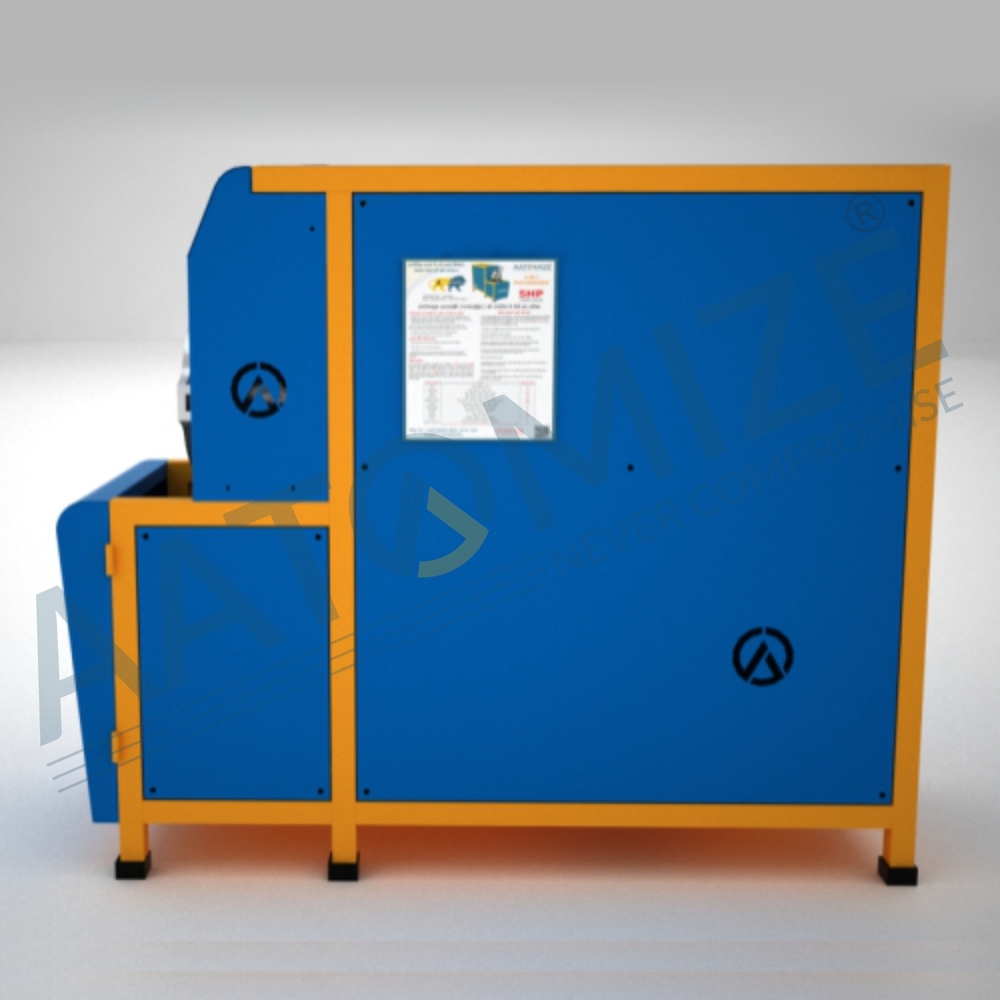

Without Cyclone Masala Machine

Masala Machine

3 HP

3 HP

5 HP

MODEL NO.

AM312

AM302

AM502

Grinding Capacity

25 to 30 kg

30 to 35 kg

50 to 60 kg

Automation Grade

Semi Automatic

Semi Automatic

Semi Automatic

Material

MS Body

MS Body

MS Body

Power Source

Electric

Electric

Electric

Voltage (V)

220

415

415

Current (A)

12

4.5

8

Corrosion Resistance

Yes

Yes

Yes

Power Consumption

2.30 KWH

2.30 KWH

3.75 KWH

Motor Speed RPM

1440 rpm

1440 rpm

1440 rpm

Bitter (Cutter) RPM

3840 rpm

3840 rpm

3840 rpm

Frequency (HZ)

50

50

50

Motor Type

Single Phase

Three Phase

Three Phase

Coating

Powder Coating

Powder Coating

Powder Coating

Chamber

Double Chamber

Double Chamber

Double Chamber

Machine Dimension Inch

L-51 inch  W-21 inch  H-44 inch

L-51 inch  W-21 inch  H-44 inch

L-55 inch  W-21 inch  H-47 inch

Front Chamber Dimension Inch

10 inch  Dia x 5 inch  Depth

10 inch  Dia x 5 inch  Depth

10 inch  Dia x 6.5 inch  Depth
