Haldi Grinding Machine

Haldi Grinding Machine About

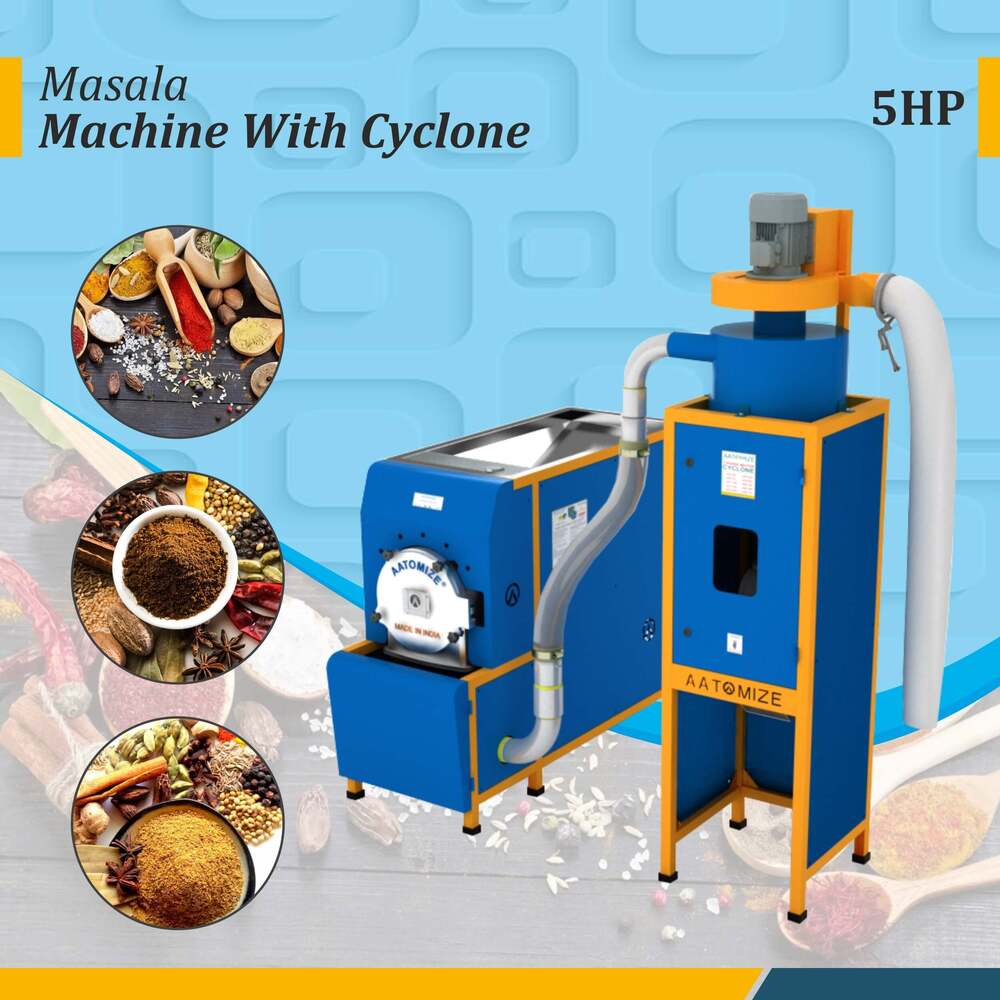

The AATOMIZE AMC502 is a commercial-grade 5HP double chamber masala pulverizer, integrated with a cyclone dust collector to ensure fine grinding and dust-free output. Built for medium-duty spice processing, this machine is ideal for grinding turmeric, chili, coriander, black pepper, cumin, and ayurvedic roots.

Engineered for continuous performance, the AMC502 features dual hoppers, high-speed twin beaters, and adjustable mesh to control the fineness of the output. The cyclone system enhances powder collection efficiency, minimizes wastage, and maintains a hygienic workspace.

Constructed from powder-coated mild steel, it is durable, rust-resistant, and easy to maintainmaking it the perfect choice for small to medium spice processors aiming for professional-grade results.

Technical Specifications:

• Model: AMC502

• Main Motor Power: 5HP (Three Phase 415V)

• Cyclone Motor Power: 0.5HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Grinding Capacity: 4060 kg/hr

• System Type: Double Chamber (2 Hopper + 2 Beater) with Cyclone

• Output Type: Fine Powder (Adjustable Mesh Size)

• Material Compatibility: Spices, Pulses, Ayurvedic Herbs

• Construction Material: Powder-Coated Mild Steel

• Power Consumption: ~5.56.5 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

Best Suited For:

• Small & Medium Masala Manufacturers

• Ayurvedic Product Makers

• Grocery & Kirana Stores

• Herbal Grinding Startups

• Food Processing Businesses

Why Choose Aatomize?

Aatomize is a trusted Indian manufacturer with over 20 years of experience, ISO 9001:2015 & CE certifications, and a growing presence in 20+ countries. The AMC502 offers a reliable, efficient, and cost-effective solution for spice processors seeking clean, high-output grinding performance.

1-Year Manufacturer Warranty
Pan-India Technical Support
Quick Spare Part Availability
