Aatomize - Heavy Duty 5HP Masala Grinding Machine

Price 255600.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aatomize - Heavy Duty 5HP Masala Grinding Machine Specification

Usage
All Types of Spices Gringing

Condition
New

Material
MS Body

Height
20 Inch (in)

Product Type
Masala Machine

Power Source
Electric

Weight
354 Kilograms (kg)

Power(W)
415 Volt (v)

Power Consumption
5 Kilowatt (kW)

Color
Blue

Length
55.5 Inch (in)

Width
46 Inch (in)

Dimension (L*W*H)
55.5*20*46 Inch (in)

Aatomize - Heavy Duty 5HP Masala Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
10 Days

Packaging Details
Wooden Box Pack

Main Domestic Market
All India

About Aatomize - Heavy Duty 5HP Masala Grinding Machine

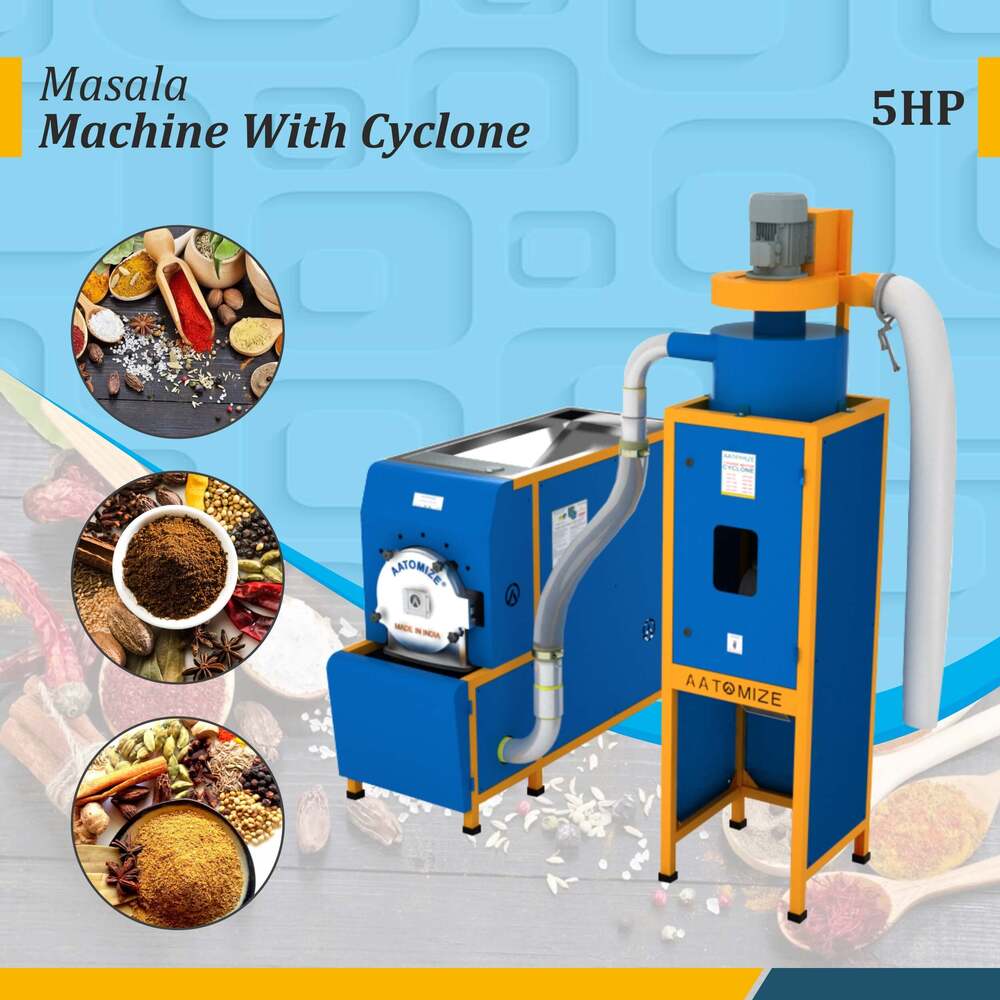

The AATOMIZE AMC502 is a 5HP commercial masala pulverizer machine equipped with a double chamber grinding system and a cyclone dust collector, specially designed for efficient, hygienic, and high-output spice grinding. With its 2 hoppers and 2 beaters, this machine ensures uniform powder consistency and a dust-free workspacemaking it ideal for small spice manufacturers, grocery shops, flour mills, and herbal powder makers.

It is capable of processing a wide range of materials like turmeric, red chili, coriander, cumin, black pepper, fennel, and ayurvedic roots. The built-in cyclone unit collects fine particles efficiently, reduces product loss, and maintains a clean environment. The adjustable mesh system offers full control over powder fineness as per different production needs.

Constructed with a powder-coated mild steel body, the AMC502 offers robust performance, long-term reliability, and low maintenance, even with daily commercial use.

Technical Specifications:

Feature	Specification
Model	AMC502
Main Motor Power	5HP (Three Phase 415V)
Cyclone Motor Power	1HP
Motor RPM	2880 RPM
Beater Speed	3840 RPM
System Type	Double Chamber (2 Hopper + 2 Beater)
Cyclone Unit	Included
Grinding Capacity	4060 kg/hr
Output Texture	Adjustable Mesh Fine to Medium
Material Compatibility	Spices, Grains, Pulses, Herbs
Body Material	Powder-Coated Mild Steel
Power Consumption	~5.56.5 kWh
Automation Grade	Semi-Automatic
Warranty	1 Year (Motor & Machine)

Ideal For:

Spice Manufacturing Units
Grocery Shops & Kirana Stores
Ayurvedic Powder Manufacturers
Small Flour Mill Owners
Herbal Product Producers

Why Choose Aatomize?

With 20+ years of manufacturing experience, ISO 9001:2015 & CE-certified products, and a presence in 20+ countries, Aatomize is trusted for delivering reliable, compact, and high-efficiency pulverizer machines. The AMC502 is your go-to choice for consistent spice grinding with superior powder collection.

1-Year Manufacturer Warranty
All-India Service & Support
Fast Spare Parts Availability
