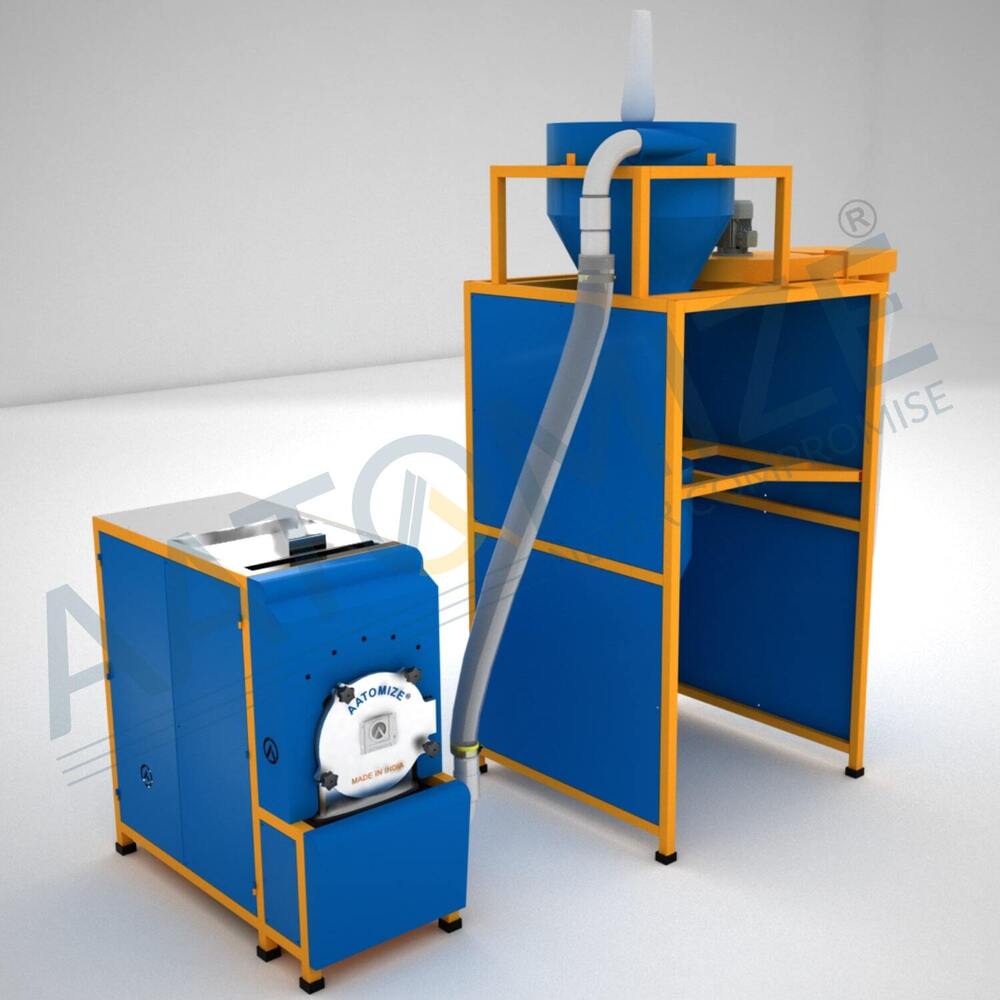

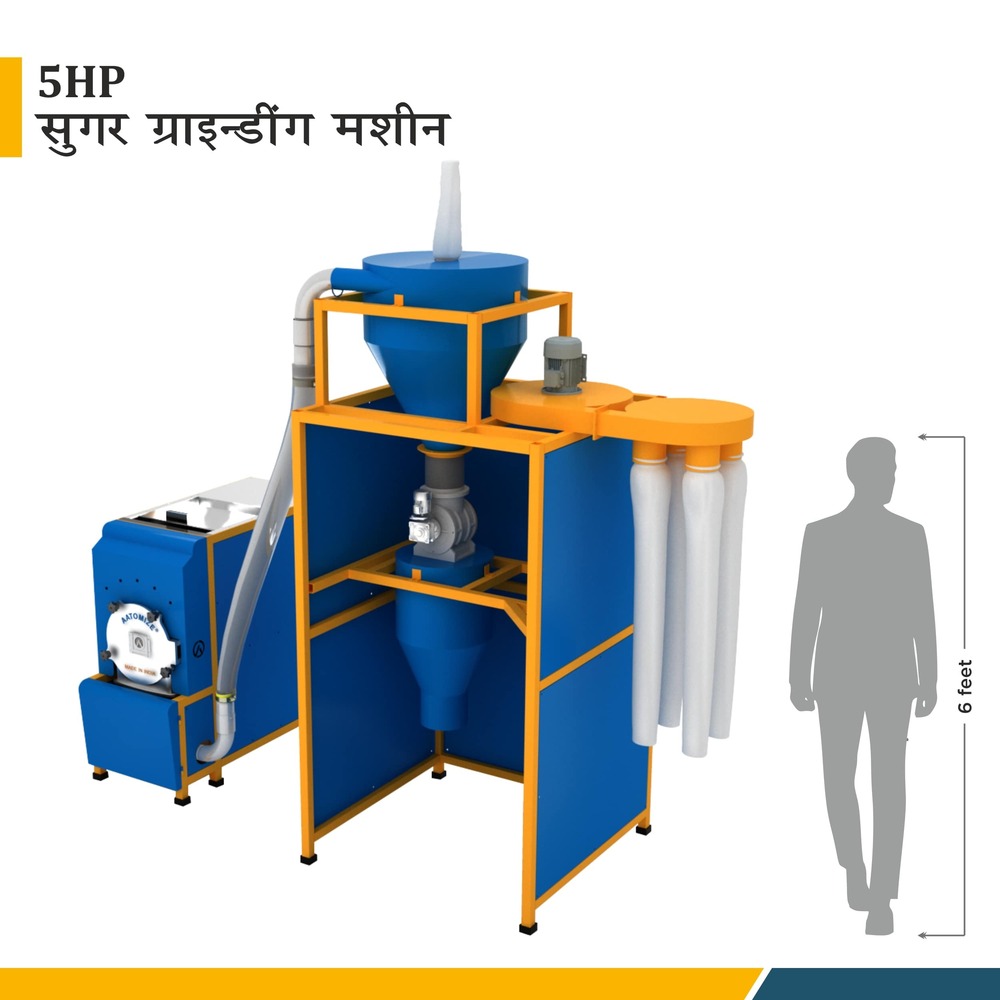

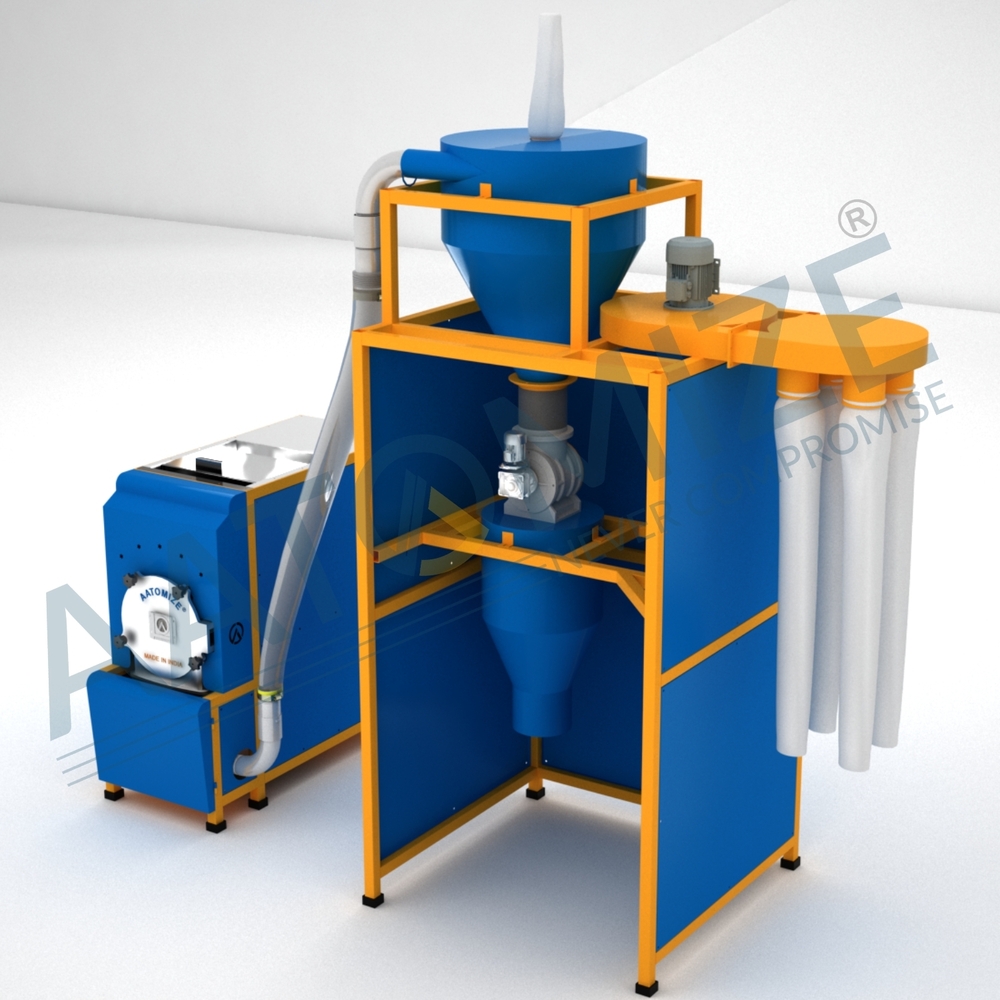

5HP Sugar Grinding Machine with Cyclone Separator
5HP Sugar Grinding Machine with Cyclone Separator 5HP Sugar Grinding Machine with Cyclone Separator 5HP Sugar Grinding Machine with Cyclone Separator 5HP Sugar Grinding Machine with Cyclone Separator 5HP Sugar Grinding Machine with Cyclone Separator 5HP Sugar Grinding Machine with Cyclone Separator

5HP Sugar Grinding Machine with Cyclone Separator

349000 INR/Unit

Product Details:

  • Phase Three
  • Frequency 50 Hertz (HZ)
  • Power Source Electric
  • Automation Grade Semi Automatic
  • General Use Grinding
  • Material Cast Iron
  • Capacity 300-500 Kg/hr
  • Click to View more
X

5HP Sugar Grinding Machine with Cyclone Separator Price And Quantity

  • 1 Unit
  • 349000 INR/Unit

5HP Sugar Grinding Machine with Cyclone Separator Product Specifications

  • Yes
  • Semi Automatic
  • Grinding
  • Manual
  • 5 Horsepower (HP)
  • 1 year
  • 415 Volt (v)
  • Cast Iron
  • Blue
  • Three
  • 300-500 Kg/hr
  • 50 Hertz (HZ)
  • No
  • Electric
  • Free Stand
  • Block

5HP Sugar Grinding Machine with Cyclone Separator Trade Information

  • Cash in Advance (CID)
  • 10 Days
  • wooden box pack
  • All India

Product Description

The AATOMIZE AZSC501 is a robust and high-efficiency 5HP sugar grinding machine, designed to produce fine to ultra-fine powdered sugar with consistent texture and dust-free performance. Ideal for medium-scale confectionery units, bakeries, and sweet manufacturers, this machine ensures hygienic and continuous sugar grinding with minimal power usage.

Built with a double chamber system, dual hopper with high-speed beater mechanism, and a powder-coated mild steel body, the AZSC501 is built for durability and smooth operation. With a grinding capacity of 6080 kg/hr, it is well-suited for small commercial kitchens, bulk sweet production units, and packaging businesses requiring premium-quality icing sugar or powdered sugar.


Technical Specifications:

Feature Specification
Model AZSC501
Motor Power 5HP (Three Phase 415V)
Chamber Type Double Chamber (2 Hopper + 2 Beater)
Grinding Capacity 6080 kg/hr
Material Processed White Sugar, Candy Crystals
Body Material Powder-Coated Mild Steel
Motor RPM 2880
Beater RPM 3840
Power Consumption ~5.56.0 kWh
Automation Grade Semi-Automatic
Output Mesh Adjustable Fine to Superfine Powder
Warranty 1 Year (Motor & Machine)


Ideal For:

  • Confectionery & Sweet Manufacturers

  • Commercial Bakeries & Dessert Kitchens

  • Icing Sugar Suppliers

  • Agro-Food Packaging Units

  • Small to Medium Food Processing Plants


Why Choose Aatomize?

  • 20+ years of leadership in food grinding solutions

  • ISO 9001:2015 & CE Certified quality assurance

  • Trusted in 20+ countries for industrial-grade performance

  • Designed for fine, dust-free output with low breakdowns

  • Pan-India service network & readily available spare parts

  • Preferred brand for reliability, build quality, and ROI
