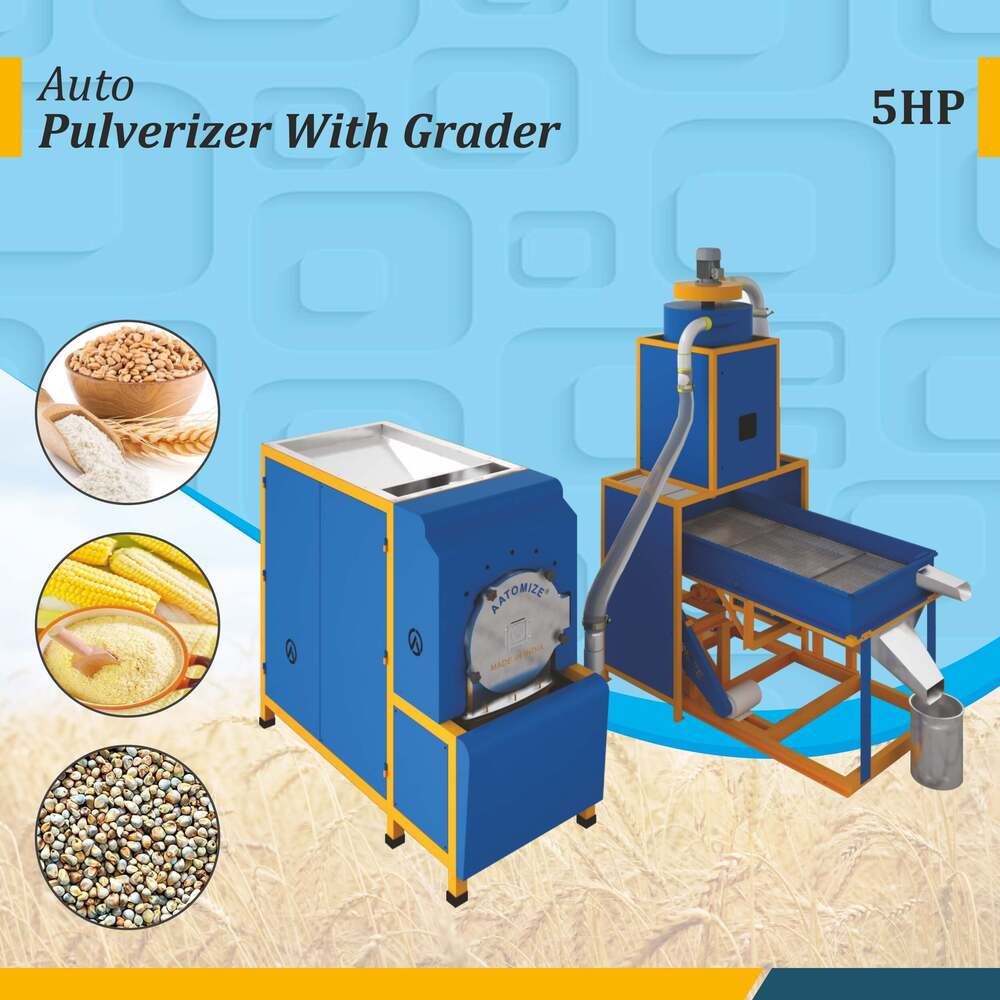

5HP Creta Power Pulverizer with Grader and Cyclone

5HP Creta Power Pulverizer with Grader and Cyclone About

The AATOMIZE AZAGC502A is a compact yet powerful 5HP pulverizer machine equipped with an atta grader and cyclone dust collector, designed for fine grinding and flour grading in a single integrated unit. Ideal for flour mills, spice manufacturers, and small agro-processing units, this machine delivers clean, consistent, and ultra-fine powder output with minimal effort.

With a double chamber design, dual hopper, and high-speed dual beater system, this machine ensures efficient pulverization of wheat, maize, pulses, spices, and even herbal powders. The cyclone dust separator maintains a clean working environment, while the integrated grading system allows precise flour separation by mesh size.

Its powder-coated mild steel body ensures durability and easy maintenance, making it the go-to machine for operations that need both grinding and sifting from a compact unit.

Technical Specifications:

• Model: AZAGC502A

• Main Motor Power: 5HP (Three Phase 415V)

• Cyclone Motor Power: 0.5HP

• Grader Motor Power: 0.5HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Grinding Capacity: 4060 kg/hr

• System Type: Double Chamber + Cyclone Separator + Atta Grader

• Output Type: Fine Flour, Masala Powder, Graded Output (Adjustable Mesh)

• Material Compatibility: Wheat, Maize, Pulses, Spices, Herbs

• Construction: Powder-Coated Mild Steel

• Power Consumption: ~6.57.5 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

Best Suited For:

• Small Commercial Flour Mills

• Spice & Masala Manufacturing Units

• Herbal Powder Processing Units

• Food Ingredient Grading & Grinding Plants

• Grocery Stores & Kirana Shop Owners

Why Choose Aatomize?

With 20+ years of industry experience, ISO 9001:2015 and CE Certifications, and a presence in 20+ countries, Aatomize stands for performance, durability, and innovation. The AZAGC502A is an all-in-one solution for fine grinding, flour grading, and dust-free processing, designed to meet the needs of growing food and spice businesses.

Backed by a 1-year warranty, responsive support, and spare part availability, Aatomize ensures smooth operations and long-term satisfaction.
