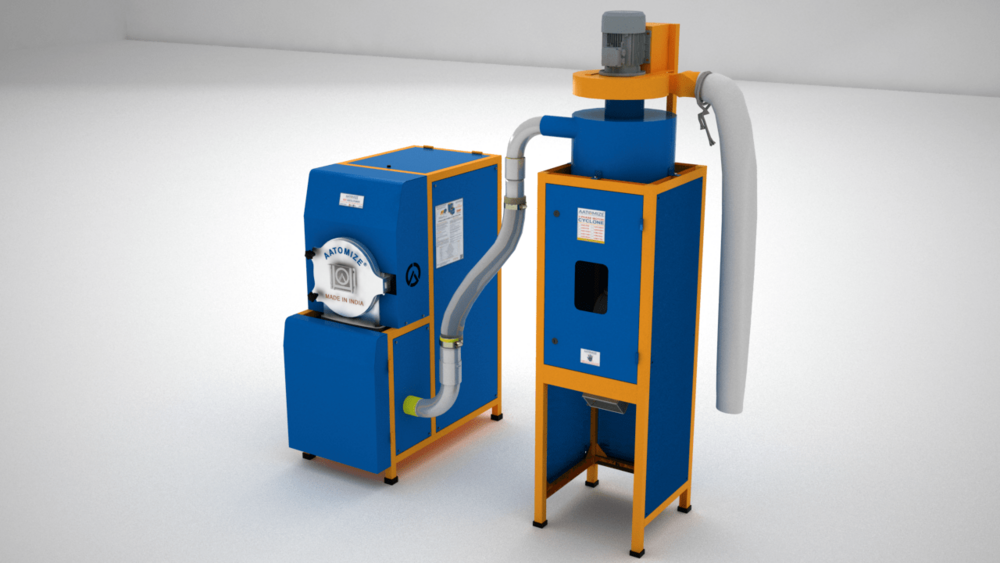

Aatomize Double Chamber Masala Pulverizer 3HP with Cyclone

Aatomize Double Chamber Masala Pulverizer 3HP with Cyclone About

The AATOMIZE AMC302 is a compact and efficient 3HP double chamber masala pulverizer, designed to deliver dust-free, fine grinding for small commercial applications. Integrated with a cyclone separator, it ensures maximum powder recovery with minimal air pollution, making it a clean and smart choice for spice processing units.

Equipped with two hoppers, dual beaters, and adjustable mesh screens, the AMC302 enables fast, uniform grinding of dry ingredients like turmeric, chili, coriander, cumin, black pepper, and herbal roots. The cyclone dust collector enhances cleanliness, improves powder output, and reduces product wastageideal for hygienic food processing.

Made with a powder-coated mild steel body, the AMC302 offers a durable structure, low maintenance, and long-lasting performance, even under regular usage.

Technical Specifications:

• Model: AMC302

• Main Motor Power: 3HP (Single/Three Phase 220V/415V)

• Cyclone Motor Power: 0.5HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Grinding Capacity: 2030 kg/hr

• System Type: Double Chamber (2 Hopper + 2 Beater) + Cyclone Separator

• Output Type: Fine Powder (Adjustable Mesh Size)

• Compatible Materials: Dry Spices, Herbs, Ayurvedic Roots

• Construction Material: Powder-Coated Mild Steel

• Power Consumption: ~3.54.0 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)

Best Suited For:

• Small Masala & Spice Manufacturing Units

• Grocery & Kirana Stores

• Home-Based Spice Processing Startups

• Ayurvedic & Herbal Powder Makers

• Local Agro-Food Enterprises

Why Choose Aatomize?

With over 20 years of expertise, ISO 9001:2015 & CE Certification, and a client base in 20+ countries, Aatomize offers highly durable and reliable machines tailored for the food processing industry. The AMC302 is the perfect blend of compact design, clean operation, and commercial output for growing businesses.

1-Year Warranty
All-India Technical Support
Easy Spare Part Availability
