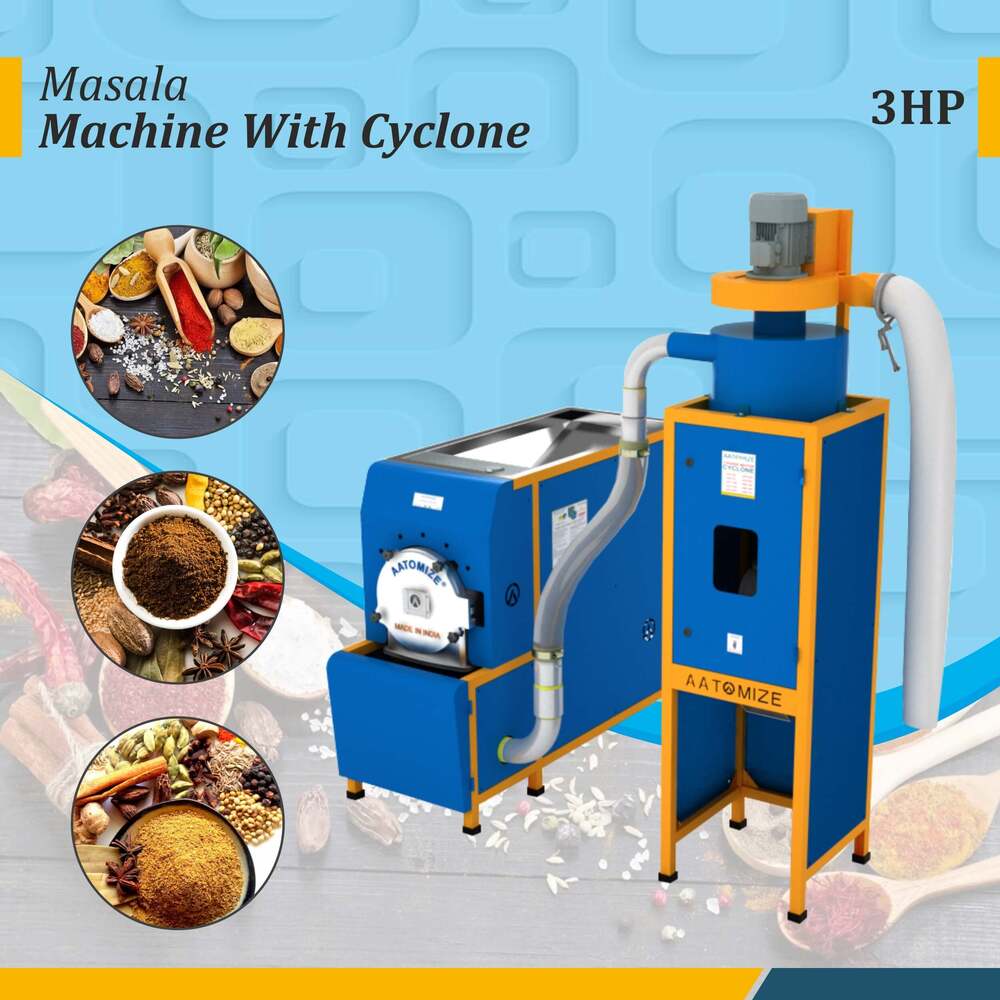

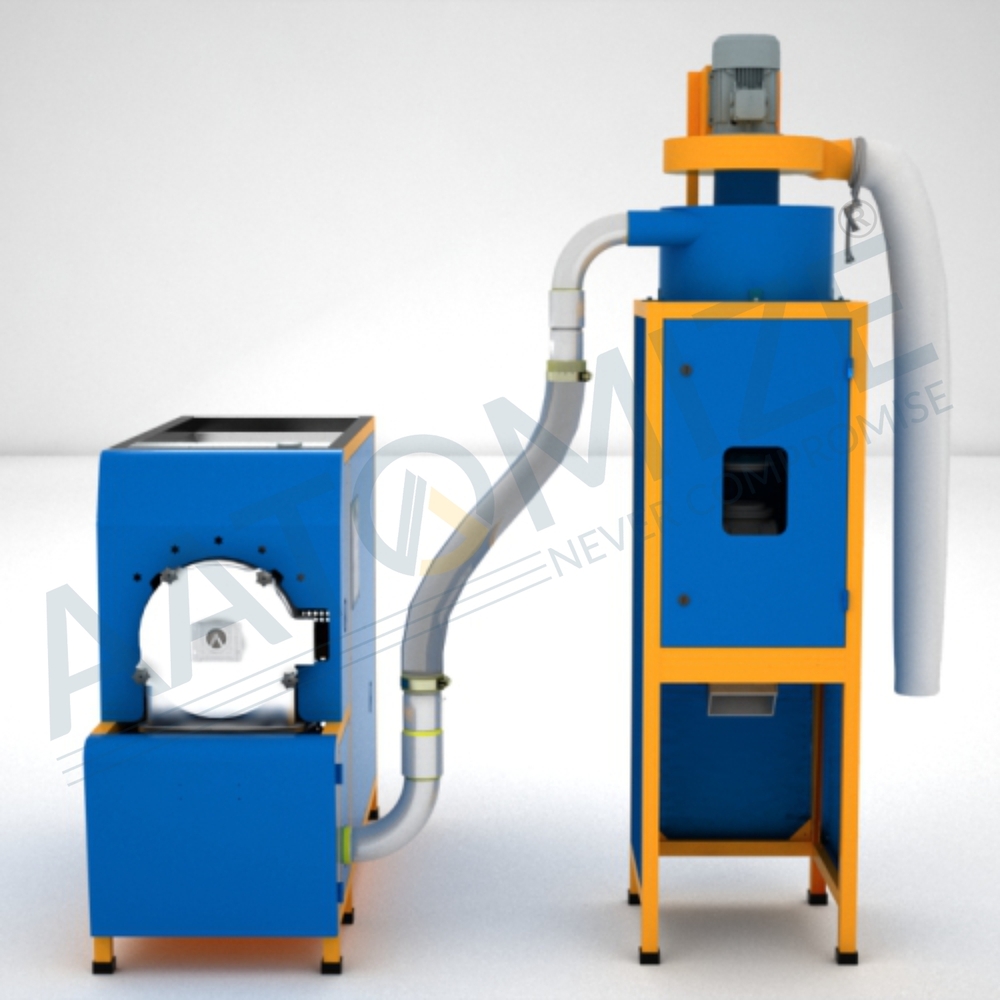

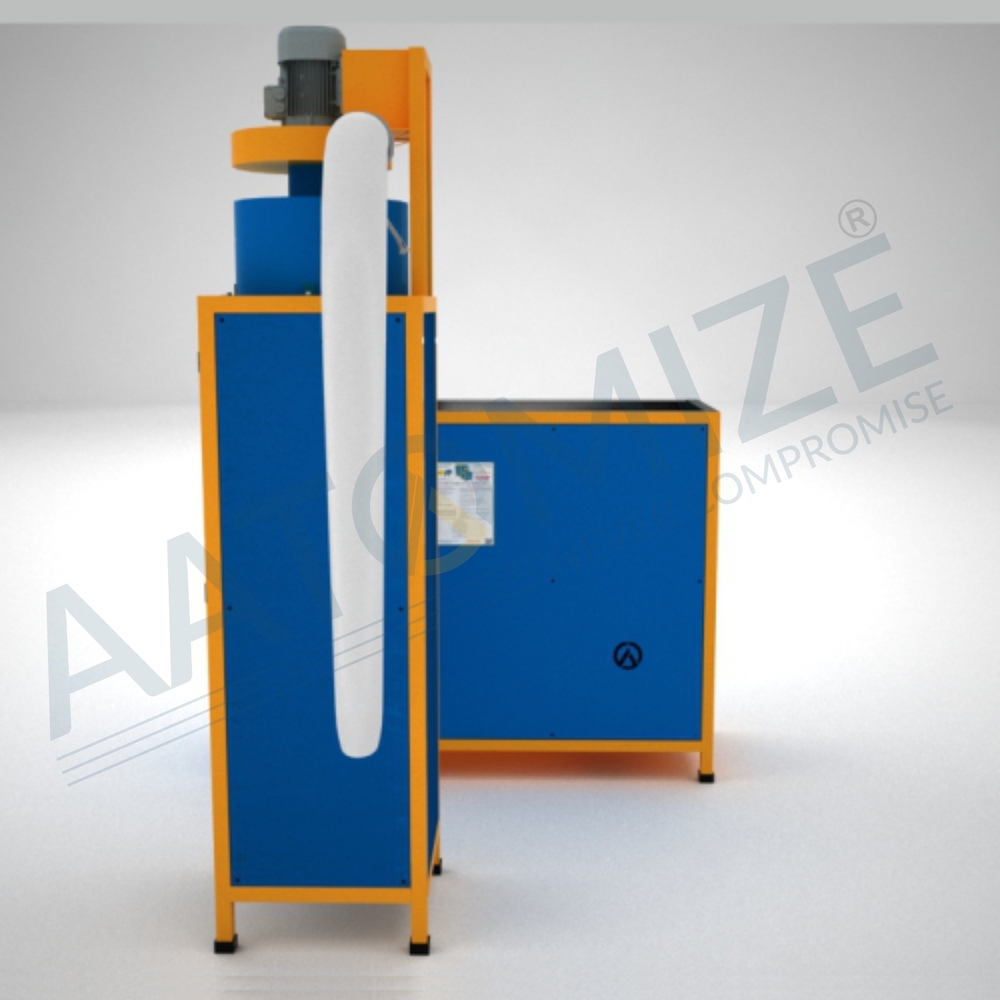

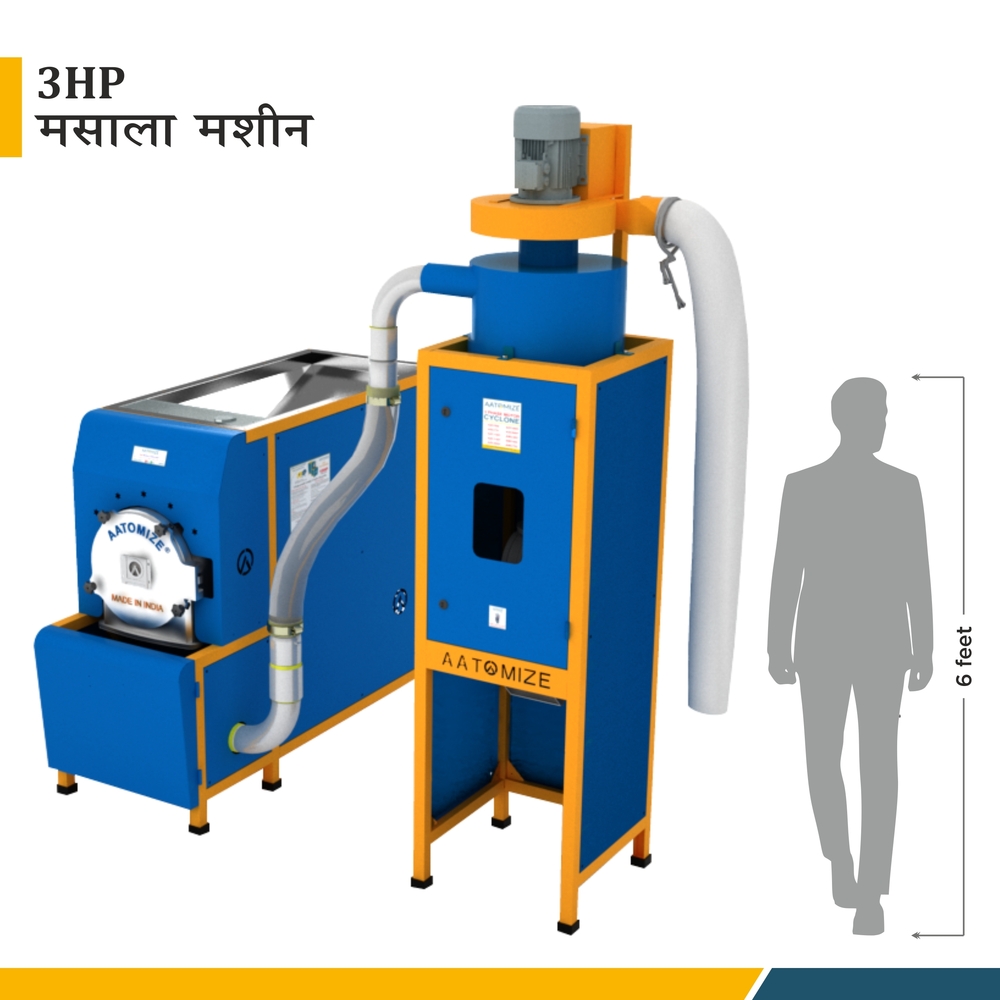

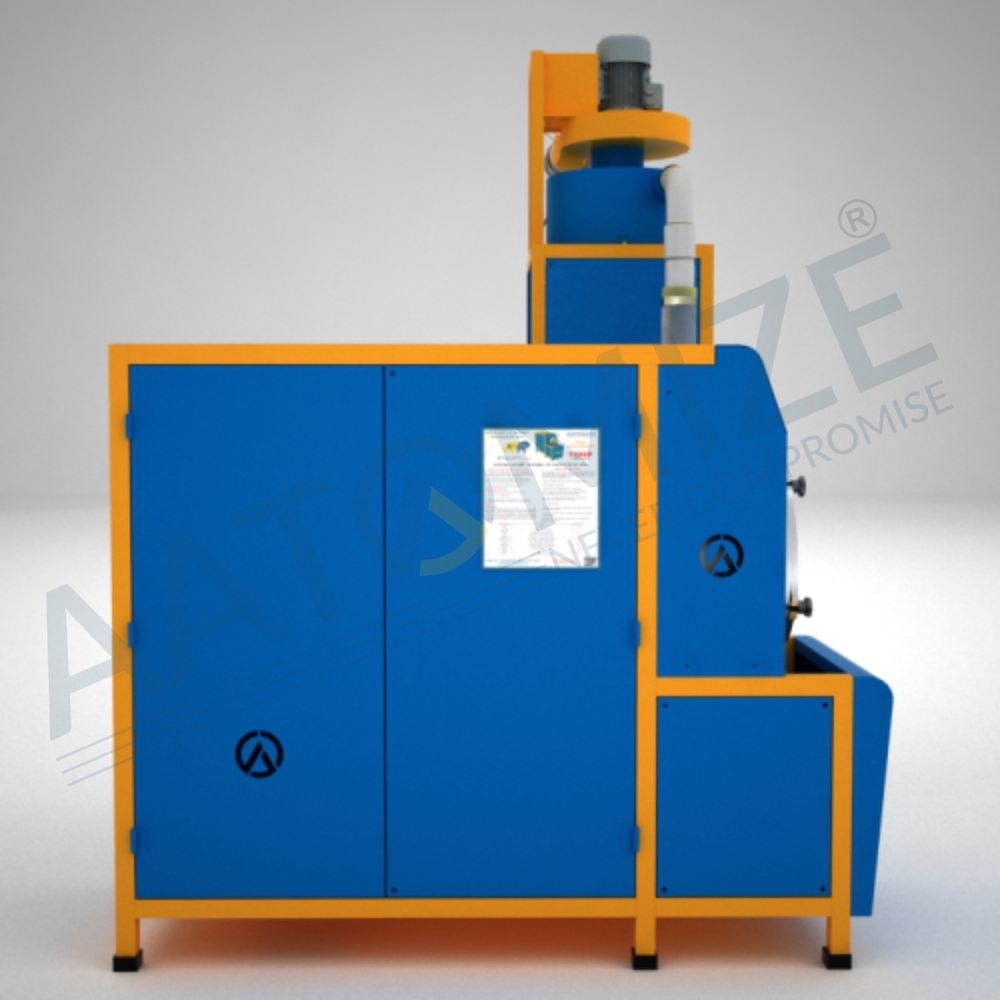

3HP Masala Grinding Machine with Cyclone

Product Description

The AMC302 is a compact yet powerful 3HP masala pulverizer with cyclone, built for small to medium spice processing applications. Designed and manufactured by Aatomize, this machine delivers precision grinding with minimal dust, thanks to its integrated cyclone separator. The double chamber structure provides smoother grinding operations and reduces heat generation, enhancing the quality of the spices.

Equipped with a 1440 RPM motor, this pulverizer can process 30–35 kg of spices per hour, depending on material type and mesh size. It features a durable MS body with powder coating, ensuring longevity and corrosion resistance. The cyclone suction system collects fine particles and maintains a clean working environment.

Ideal for grinding turmeric, chili, coriander, garam masala, and other spices, AMC302 is widely used in spice shops, small spice factories, and commercial kitchens. Its low power consumption (3.5KWH) and semi-automatic design make it cost-effective and user-friendly.

Key Specifications:

• Power: 3HP, Three Phase, 415V, 50Hz

• Grinding Capacity: 30–35 kg/hr

• Motor RPM: 1440 | Beater Cutter RPM: 3840

• Chamber: Double

• Cyclone Motor: 0.5 & 1 HP

• Front Chamber: 10” Dia x 5.00” Depth

• Cyclone Dimension: L-22”, W-22”, H-39”

• Body Material: MS with Powder Coating

• Energy Consumption: 3.5KWH
