20HP High-Capacity Pulverizer

20HP High-Capacity Pulverizer About

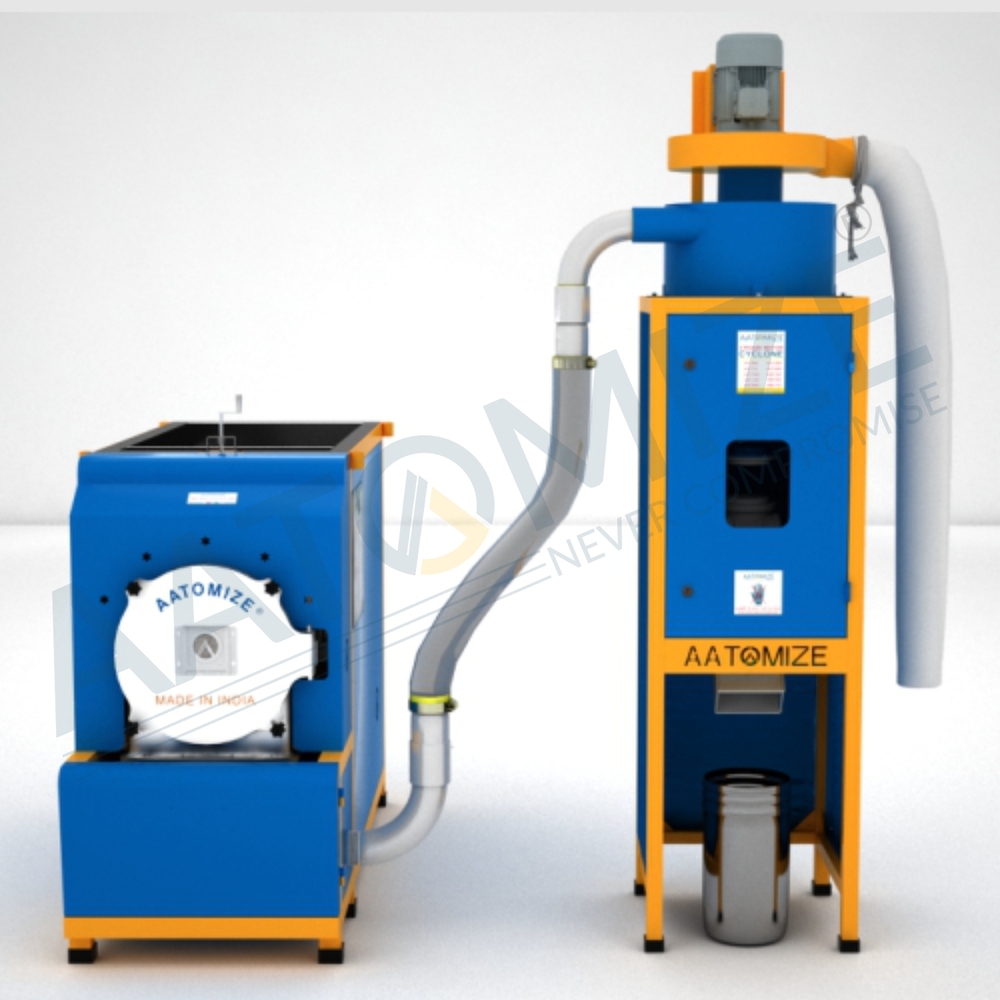

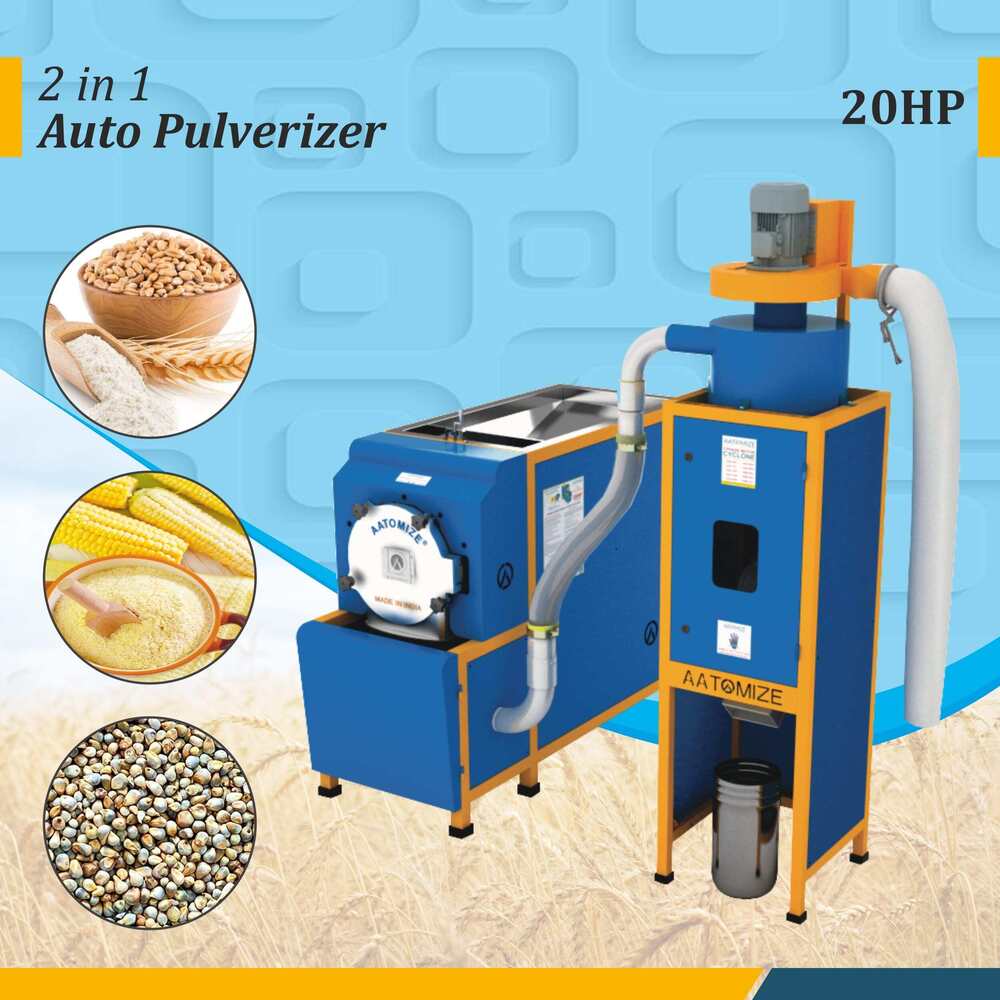

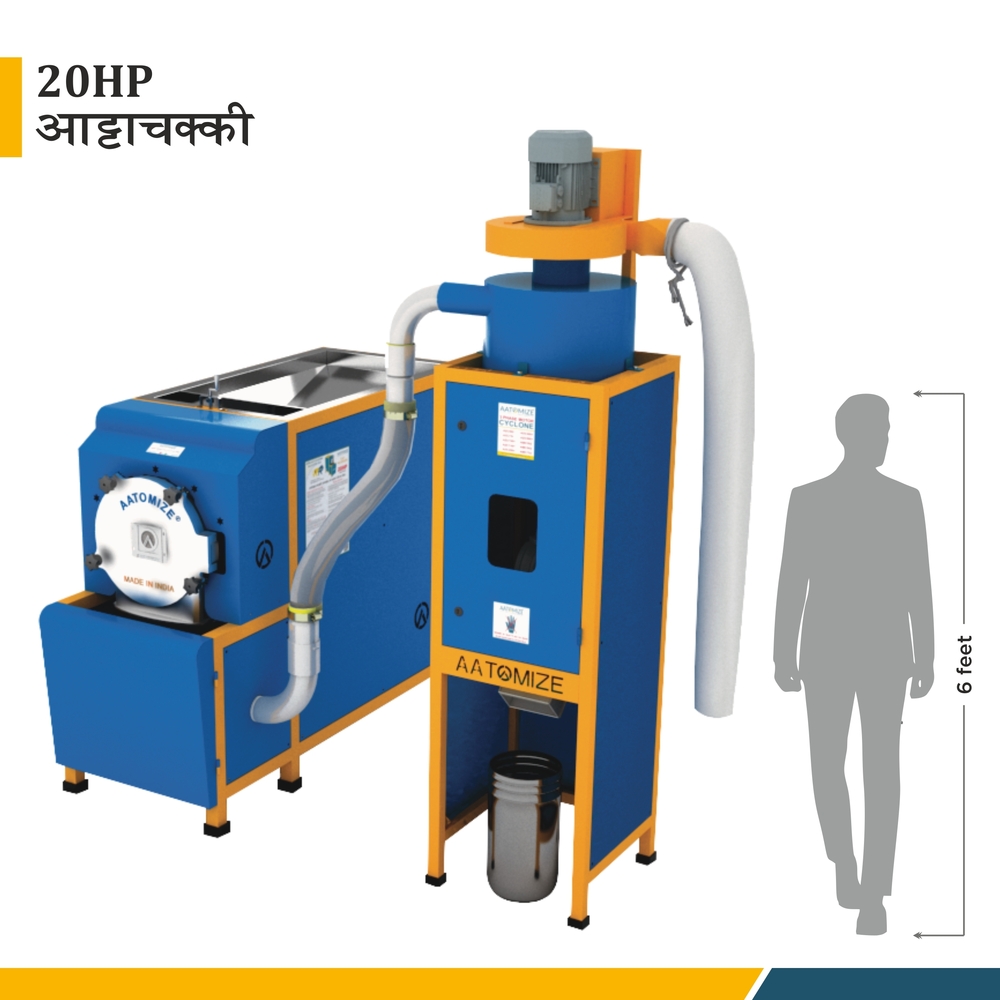

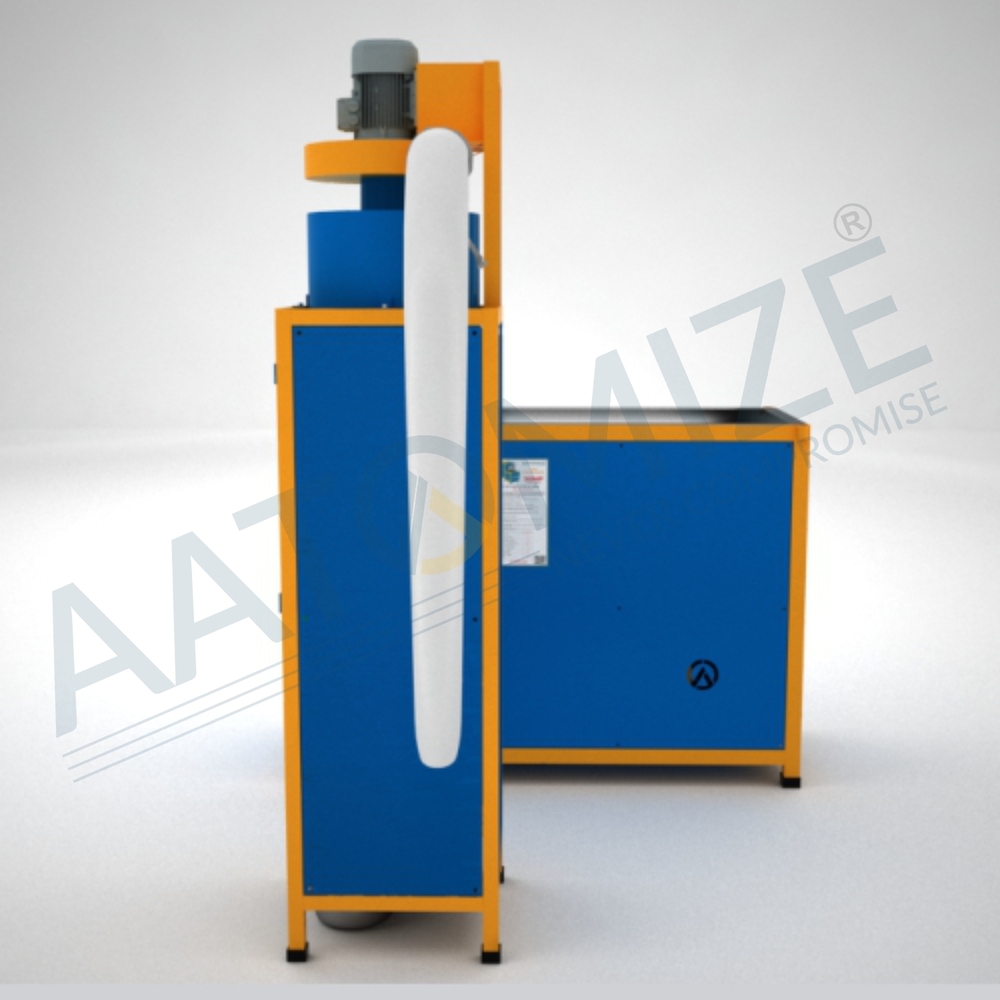

1. The AATOMIZE AZC2001A is a 20HP industrial-grade pulverizer featuring a double chamber grinding system and an integrated cyclone dust collector, designed for high-output spice and grain processing applications. Built for continuous performance, it delivers dust-free grinding, consistent powder texture, and high material recovery.

   This model comes equipped with 2 hoppers and 2 high-speed beaters, capable of processing a wide range of dry materials including turmeric, chili, coriander, wheat, maize, pulses, and herbal roots. The cyclone system minimizes airborne dust, improves cleanliness, and captures fine particles effectively. The adjustable mesh allows for flexible control over the final powder fineness.

   Manufactured using powder-coated mild steel, the AZC2001A is known for its long operational life, low maintenance, and reliable industrial-grade construction.

   ---

   Technical Specifications:

   Feature	Specification
   Model	AZC2001A
   Main Motor Power	20HP (Three Phase 415V)
   Cyclone Motor Power	1HP
   Main Motor RPM	2880 RPM
   Beater Speed	3840 RPM
   System Type	Double Chamber (2 Hopper + 2 Beater) with Cyclone
   Grinding Capacity	180220 kg/hr
   Output Type	Adjustable Mesh (Fine to Medium Powder)
   Material Compatibility	Spices, Pulses, Grains, Ayurvedic Materials
   Body Material	Powder-Coated Mild Steel
   Power Consumption	~1820 kWh
   Automation Grade	Semi-Automatic
   Warranty	1 Year (Motor & Machine)

   ---

   Best Suited For:

   • Masala & Spice Processing Plants

   • Commercial Flour Mills

   • Ayurvedic & Herbal Units

   • Agro-Based Industries

   • Export-Oriented Food Units

   ---

   Why Choose Aatomize?

   Aatomize Manufacturing Pvt. Ltd. is trusted by food processors in 20+ countries, backed by ISO 9001:2015 & CE certifications, and over 20 years of manufacturing experience. The AZC2001A is built for power, precision, and long-lasting industrial performance.

   1-Year Manufacturer Warranty
   Nationwide Technical Support
   Quick Spare Parts Availability
